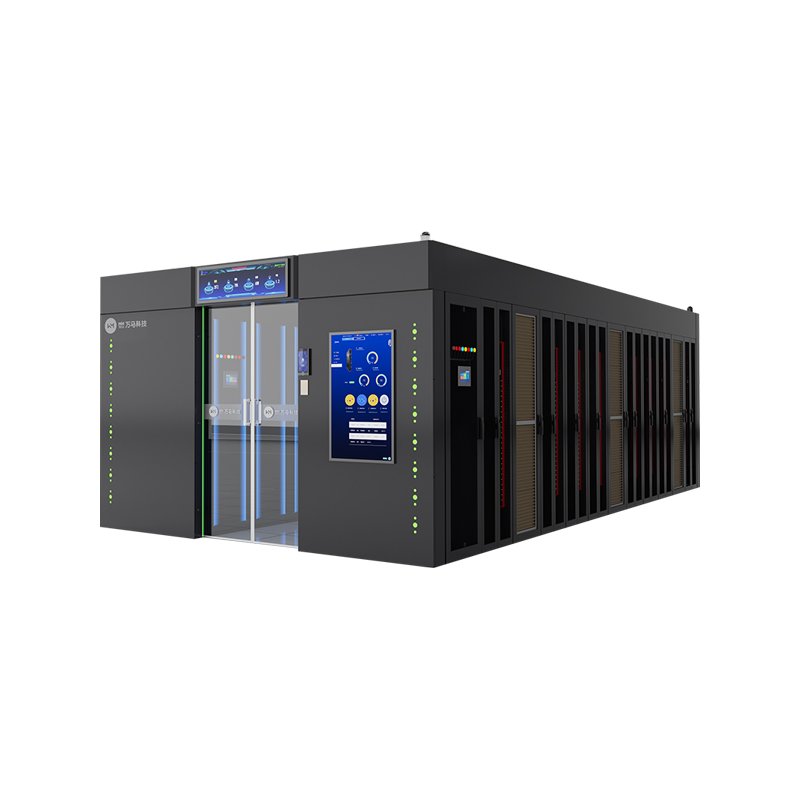

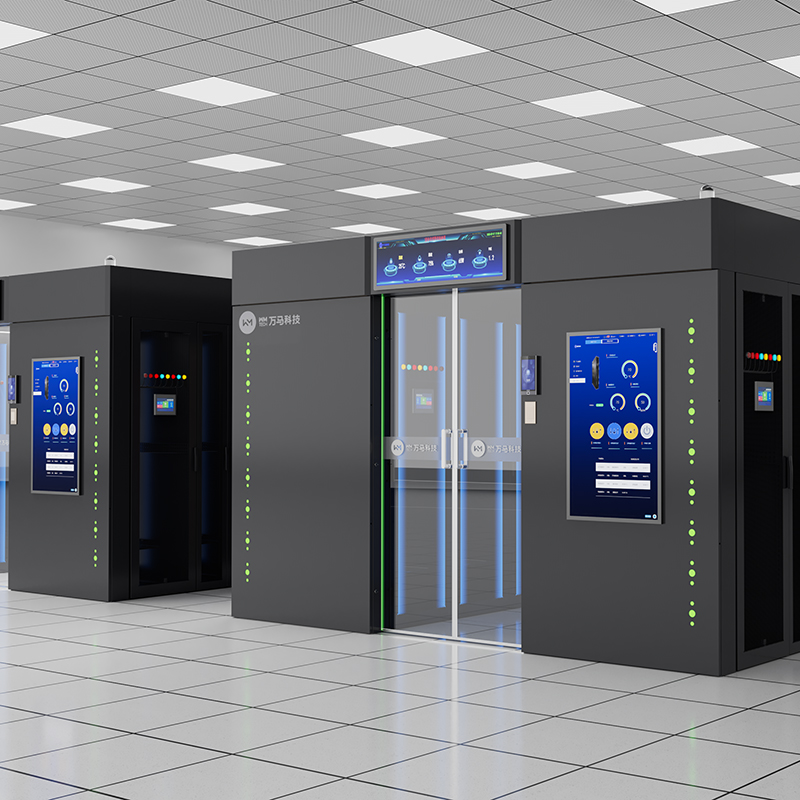

Micro-Module Data Center (MMDC)

Quantitative PUE Differences in Prefabricated Micro Module Data Centers: Row-Based Cold Aisle Containment vs. Rear Door Heat Exchanger

Understanding the Cooling Architectures

In a prefabricated micro module data center, cooling efficiency directly determines PUE (Power Usage Effectiveness). Two leading architectures exist: Row-based cold aisle containment (CAC) with in-row air conditioners, and Rear door heat exchanger (RDHx) with water-cooled coils mounted on each IT rack. Both achieve low PUE but via different thermal mechanisms, with trade-offs in IT load density, water temperature, and fan power.

Row-Based Cold Aisle Containment (CAC) – PUE Performance

• Typical PUE range: 1.25 – 1.45 (partial load) to 1.15 – 1.30 (full load at design capacity).
• Cooling mechanism: Chilled water (12-18°C supply) to in-row fan coil units. Cold aisle is physically enclosed with doors and roof panels. Hot air returns to the top of the row.
• Fan energy: Moderate – each in-row unit has 3-6 EC fans (total 1.5-3kW per 25kW rack row). Fan power represents 8-12% of IT load.
• Chiller efficiency: Requires standard chiller plant (COP 3.5-5.0). Annual cooling system EER (Energy Efficiency Ratio) ~4.0-5.5.
• Best achievable PUE: 1.12 in mild climates with free-cooling economizers. 1.25-1.30 typical for warmer regions without economizers.

Rear Door Heat Exchanger (RDHx) – PUE Performance

• Typical PUE range: 1.10 – 1.25 (high water temperature operation) to 1.05 – 1.15 with 18-22°C supply water.
• Cooling mechanism: Water coils attached to the rear door of each server rack. Warm aisle air is pulled through the coil by rack fans (or assisted by door-integrated fans). Heat is rejected to chilled water at 15-20°C, allowing chiller-free or partial cooling.
• Fan energy: Very low – primarily uses server power supply fans. Supplementary door fans (if present) add 50-150W per rack, <2% of IT load.
• Chiller efficiency: Can use very high supply water temperatures (up to 20°C), enabling free-cooling for 85-95% of annual hours in temperate climates. Chiller COP >7.0 or cooling tower only (no chiller) for many hours.
• Best achievable PUE: 1.03-1.08 in optimal climates with year-round economizer mode.

Parameter Comparison: CAC vs. RDHx in a 200kW IT Prefabricated Micro Module

The table below quantifies PUE differences and related parameters for a prefabricated micro module data center deployed in a moderate climate (annual average 18°C).

Why PUE Differs: Thermal Dynamics Explained

• Higher water temperature in RDHx: By capturing heat directly at the rack exhaust (45-55°C air), RDHx coils can use 18-22°C water. CAC mixes hot aisle air (35-38°C) with room air, requiring 12-15°C water. Every 1°C increase in chilled water temperature reduces chiller energy by 2-3%.
• Fan power reduction: CAC requires dedicated air movers pushing air across finned coils (static pressure 80-150Pa). RDHx leverages existing server fans (which already run) and adds minimal resistance.
• Economizer hours: With 20°C supply water, a dry cooler or cooling tower can provide 100% cooling without a chiller when outdoor wet-bulb is <15°C. This covers 70-90% of annual hours in many climates, slashing PUE to <1.10.

Frequently Asked Questions (FAQ)

FAQ 1: Can I retrofit RDHx into an existing row-based CAC micro module to lower PUE?

Answer: Possible but costly. RDHx requires water piping to each rack (typically 3/4" or 1" flex hoses) and a separate distribution manifold. Existing CAC chilled water loops operate at 12-15°C, which is colder than needed but still works. To achieve sub-1.15 PUE, you must raise supply water temperature to 18-22°C, which may require rebalancing the entire cooling plant. For new deployments, choose the architecture upfront. See the latest prefabricated micro module data center configurations that support hybrid CAC+RDHx designs.

FAQ 2: Does RDHx always achieve lower PUE than CAC?

Answer: No, not in hot humid climates without economizers. If ambient wet-bulb exceeds 20°C year-round (e.g., Singapore or Miami), both architectures require mechanical chilling. In that scenario, CAC (1.35-1.45 PUE) vs RDHx (1.30-1.40 PUE) the difference narrows to ~0.05-0.08. The higher capital cost of RDHx may not be justified. In temperate or cool climates (Northern Europe, parts of China, US Northeast), RDHx delivers 0.10-0.20 PUE advantage.

FAQ 3: What leakage airflow in CAC ruins PUE?

Answer: Unsealed cold aisle gaps cause bypass airflow – cold air escaping into the warm return plenum without cooling IT equipment. For every 10% of bypass air (relative to total fan flow), PUE increases by 0.03-0.05. Proper brush seals, floor grommets, and automatic door closers limit bypass to <5%. Field audits show typical poorly maintained CAC has 15-25% bypass, raising PUE from 1.25 to 1.35-1.40. RDHx has no bypass issue because cooling happens directly at each rack.

How MMDDC Edge Computing Cloud Data Center Solutions Reduce Data Transmission Latency from Core Cloud to End Devices via Distributed Architecture

The Latency Problem of Centralized Cloud Architectures

Traditional centralized enterprise data centers force all data from end devices (sensors, cameras, point-of-sale terminals, IoT gateways) to travel back to a core cloud site. This round-trip distance introduces physical latency limits based on the speed of light in fiber optics (~200km/ms). For an enterprise with devices 1000km from the core cloud, best-case round-trip time (RTT) exceeds 10ms just for transmission, plus processing queuing delays. The MMDC edge computing cloud enterprise data center solution solves this by deploying distributed micro-module data centers (MMDCs) at the network edge, placing compute and storage physically close to end devices.

How Distributed MMDC Architecture Reduces Latency

• Local data processing: Edge MMDC nodes run containerized applications or virtual network functions (VNFs) that process data locally, sending only aggregated results or alerts to the core cloud.
• Geographic dispersion: MMDCs are deployed within 5-50km of end device clusters, versus 100-3000km for a centralized cloud.
• Minimized backhaul: Only metadata or exception logs traverse long-distance WAN links. Real-time control loops (e.g., industrial robotics, autonomous guided vehicles) stay within the edge MMDC.
• Edge-native networking: Integrated 5G or MEC (Multi-access Edge Computing) gateways reduce device-to-MMDC hops from 5-10 (via core cloud) to 1-2.

Quantified Latency Comparison: Centralized Cloud vs. Distributed MMDC Edge

The table below compares end-to-end latencies for typical enterprise applications using a centralized cloud versus a distributed MMDC edge computing cloud enterprise data center solution with edge nodes placed within 20km of devices.

Architectural Components Enabling Low-Latency in MMDC Edge Solution

• Edge node pre-integration: Each MMDC includes compute (2-16x GPU or CPU servers), storage (NVMe flash), networking (25/100GbE switches), and cooling – all factory-tested for rapid deployment.
• Local data orchestration: Lightweight Kubernetes (K3s, MicroK8s) or edge-native platforms distribute workloads automatically to the nearest MMDC based on device proximity.
• WAN optimization: SD-WAN with path selection and TCP acceleration reduces jitter; some designs use RDMA over converged Ethernet (RoCE) for storage replication across edge nodes.
• Time-sensitive networking (TSN): Optional TSN switches within the MMDC provide deterministic sub-1ms latency for industrial automation workloads.

Frequently Asked Questions (FAQ)

FAQ 1: What is the typical deployment radius of an MMDC edge node for sub-10ms latency?

Answer: To guarantee sub-10ms RTT between device and edge MMDC (including processing), the physical distance must be under 200km in ideal fiber conditions, but practical deployments target <50km to account for switching, queuing, and processing delays. For <5ms RTT, keep device-to-MMDC distance under 20km. The MMDC edge computing cloud enterprise data center solution is typically deployed in multi-access edge (MEC) locations – cellular base stations, factory floors, or retail hubs – ensuring proximity to the device population.

FAQ 2: Does distributed MMDC edge architecture increase total cost compared to centralized cloud?

Answer: Capital costs are 10-30% higher due to multiple edge nodes. However, operational expenses often decrease: (1) WAN bandwidth savings of 60-90% because raw video or sensor data is processed locally; (2) lower cloud egress fees; (3) reduced downtime costs from latency-sensitive applications. For many enterprises, the total cost of ownership (TCO) over 3-5 years becomes comparable or favorable for edge MMDC deployments exceeding 50 edge locations.

FAQ 3: Can an existing centralized application be migrated to MMDC edge without rewriting code?

Answer: Partially. Stateless microservices can be re-deployed on edge MMDCs with minimal changes (update connection strings to local databases). Stateful applications requiring global consistency (e.g., financial ledgers) need re-architecting to use edge-local caches + eventual sync to core cloud. Hybrid migration patterns work best: keep core cloud for analytics and long-term storage, while real-time inference or control loops run at the edge. Most enterprises refactor 20-40% of their application portfolio to fully leverage edge latency benefits.
