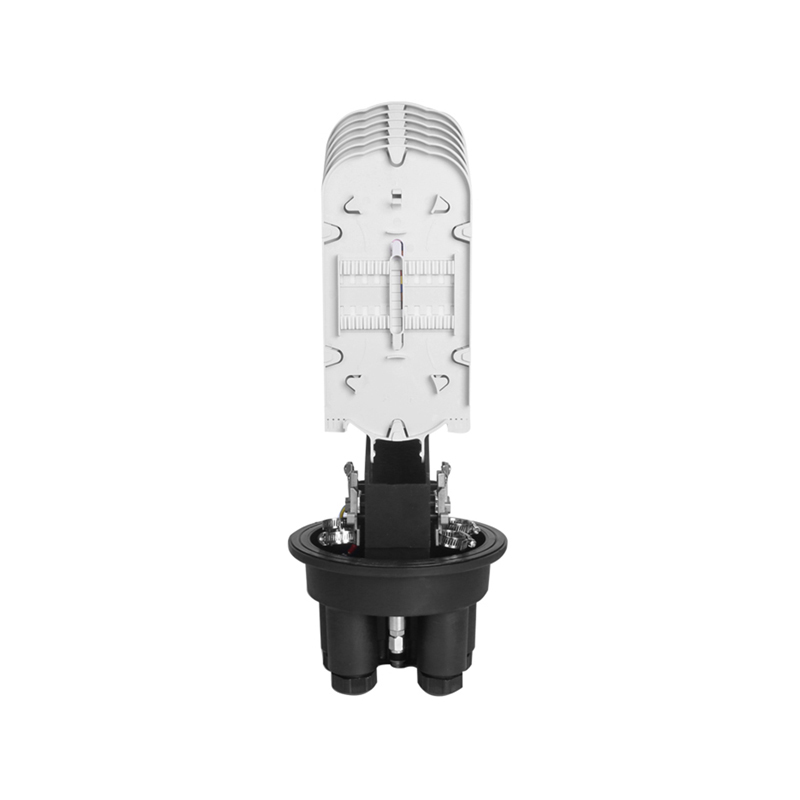

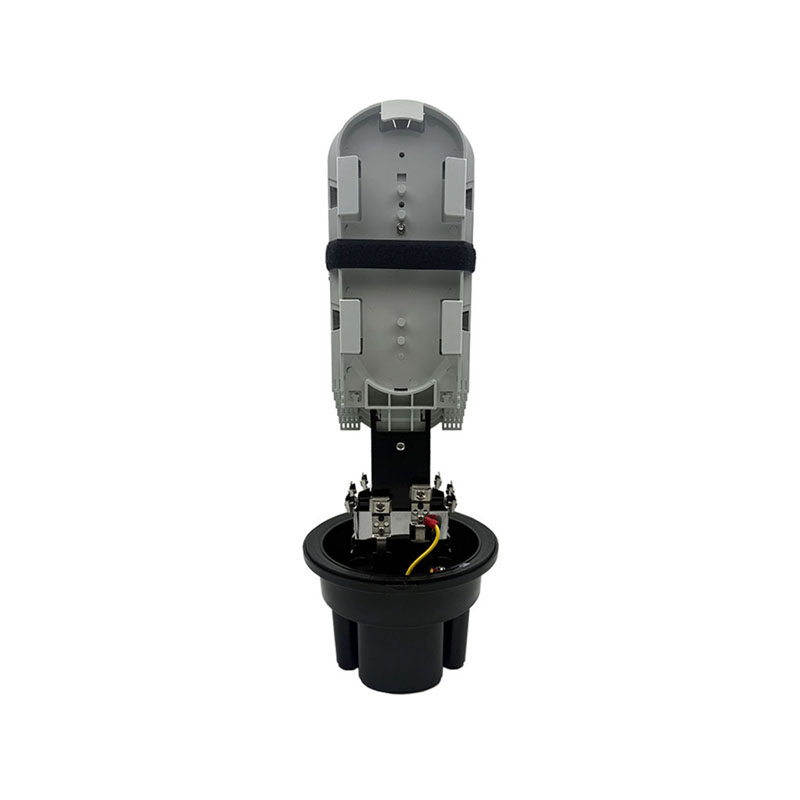

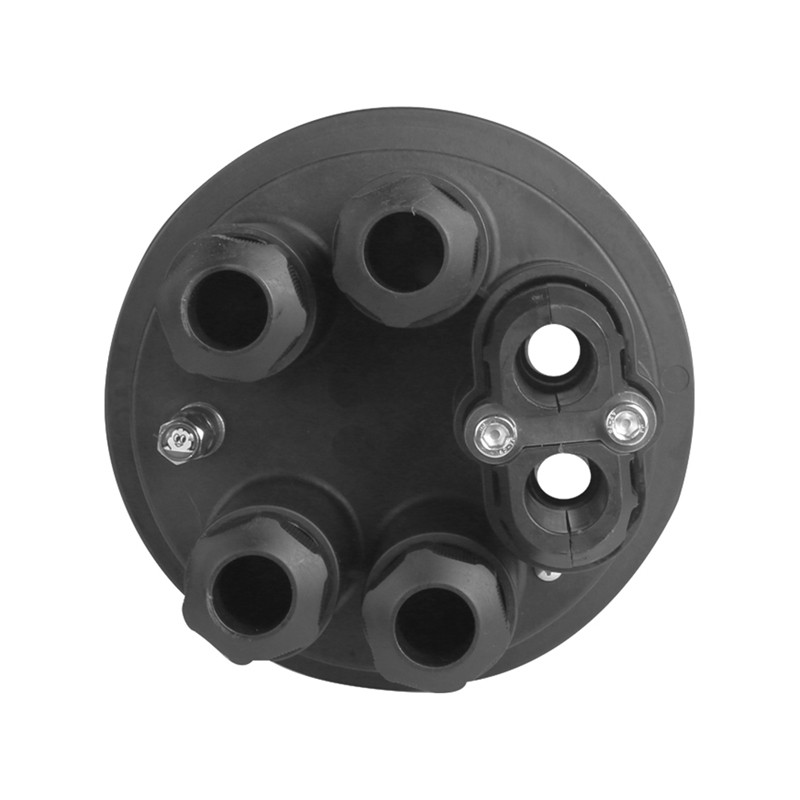

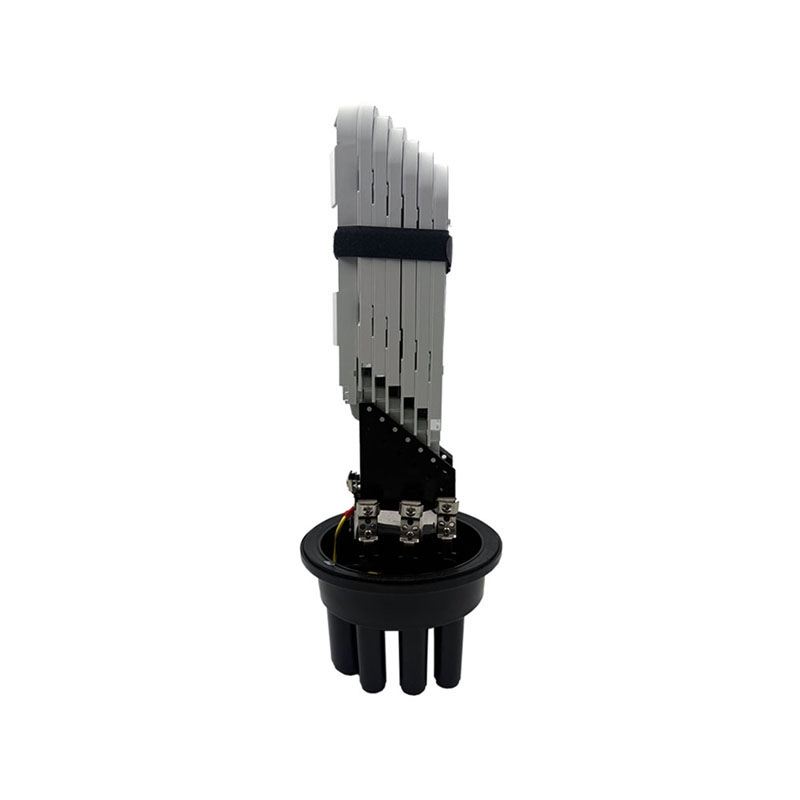

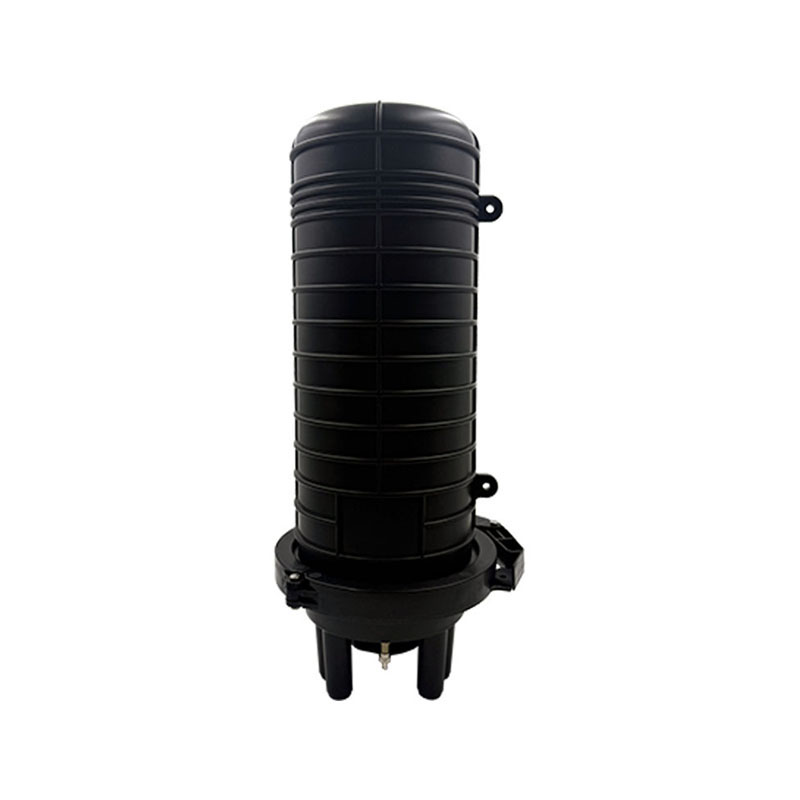

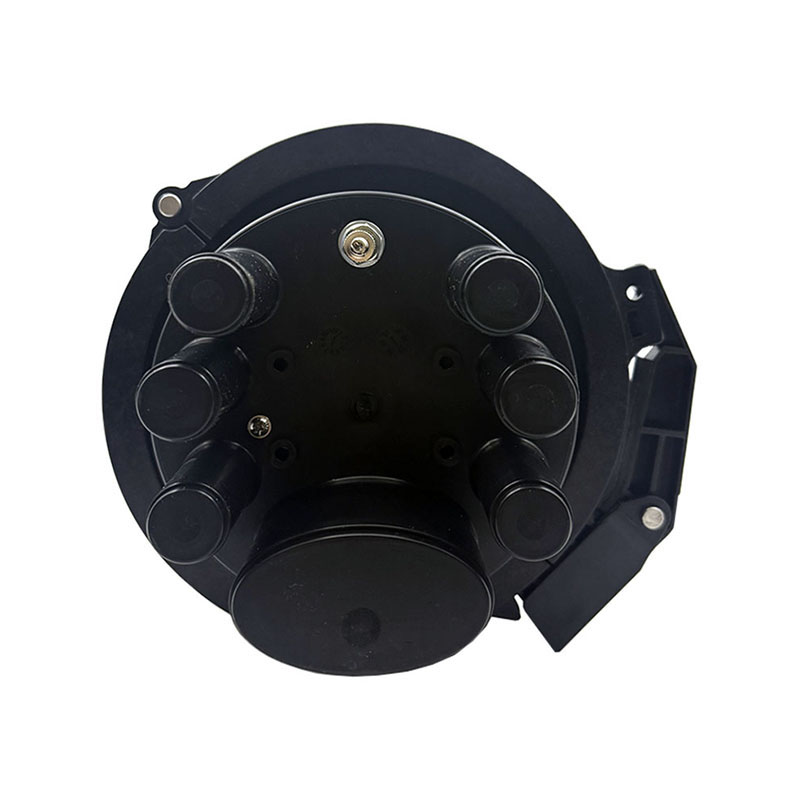

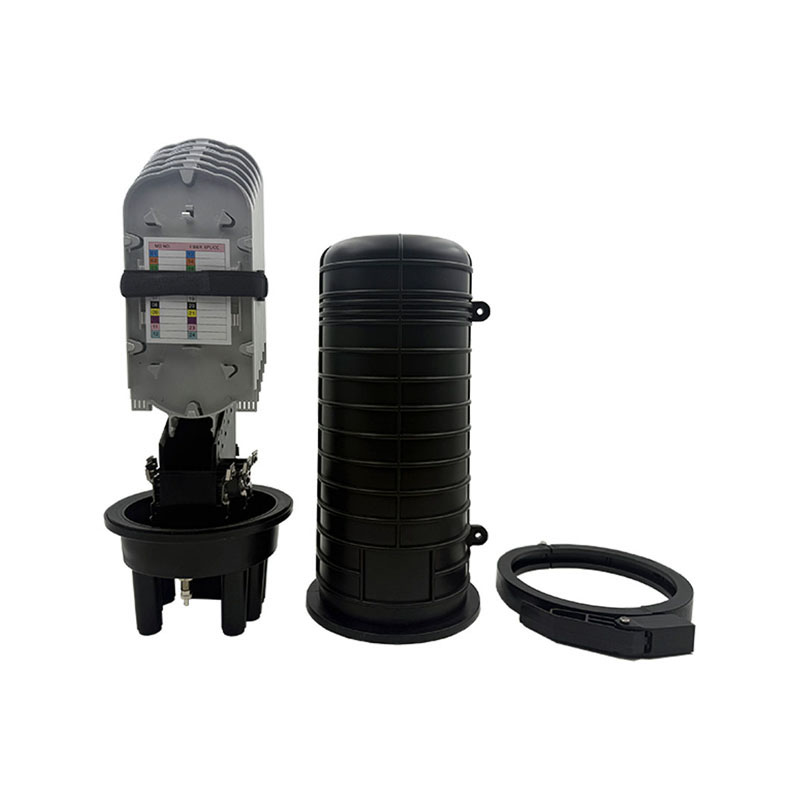

WM-2001-D07 fiber optic splice closure is a DOME closure,the main functionality is to provide the pass/through, termination and splitting during ODN(optical distribution networks) construction,the IP protection level is IP68. WM-2001-D07 has 4 round mechanical cable entrance and 1 oval mechanical cable entrance for uncut cable. The curing forming rubber provides an sealing performance against water and dust. The screw-extrusion mechanical seal mechanism facilitate the installation comparing with heat-shrinkable DOME closures. WM-2001-D07 is suitable for aerial mounting, pole mounting, wall mounting, duct installation, man-hole installation and under-ground installation.
Application:
It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.
Structure Diagram:
Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

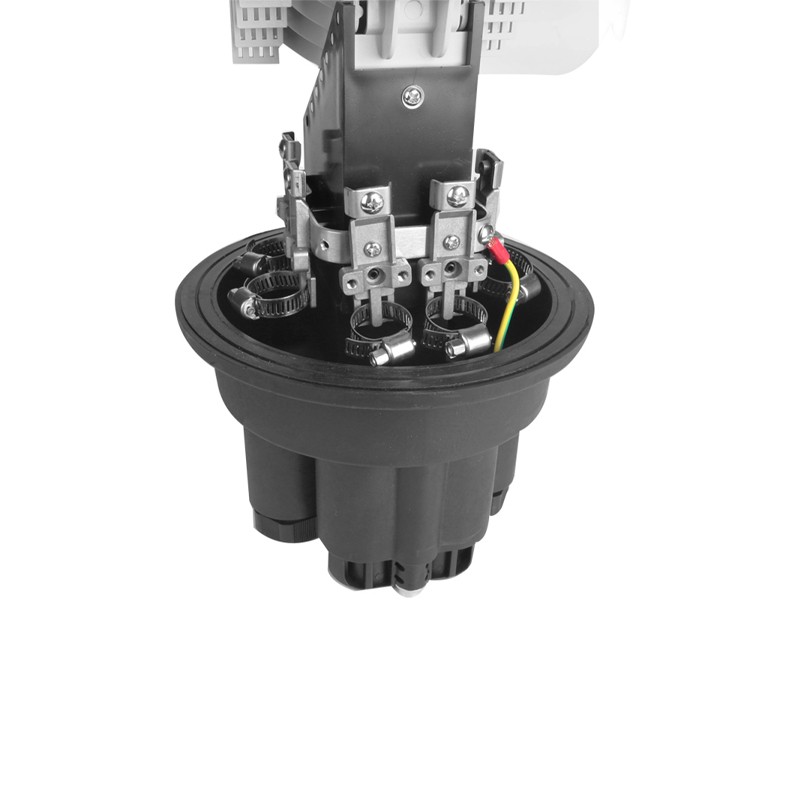

3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

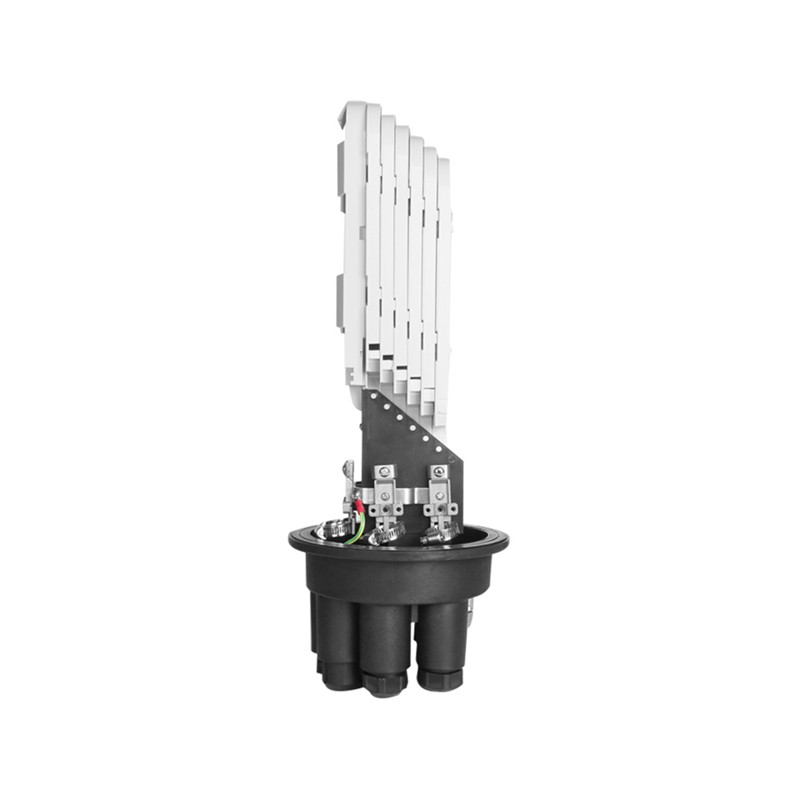

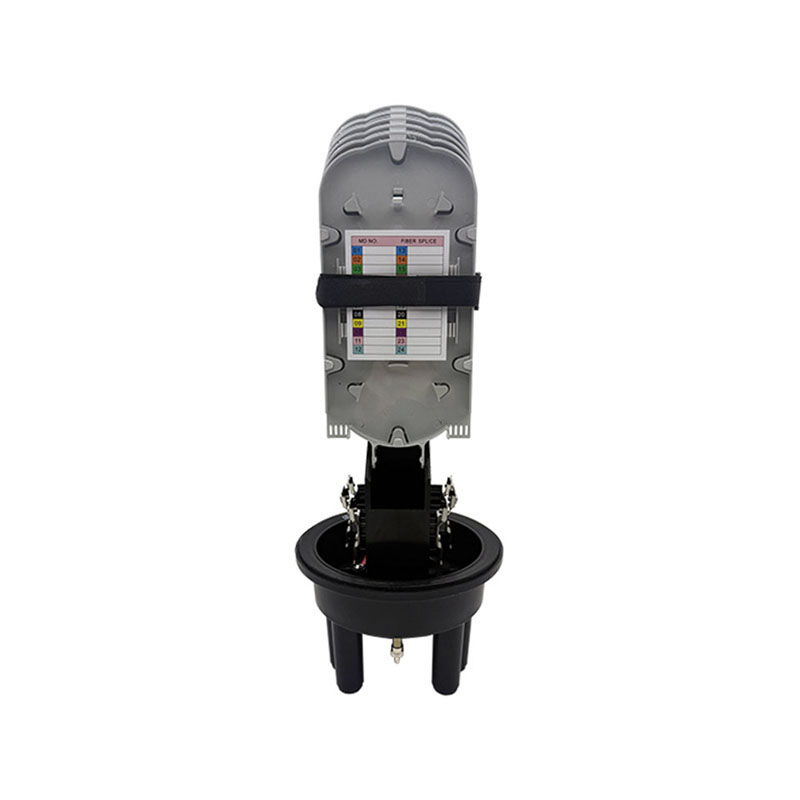

4. The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel

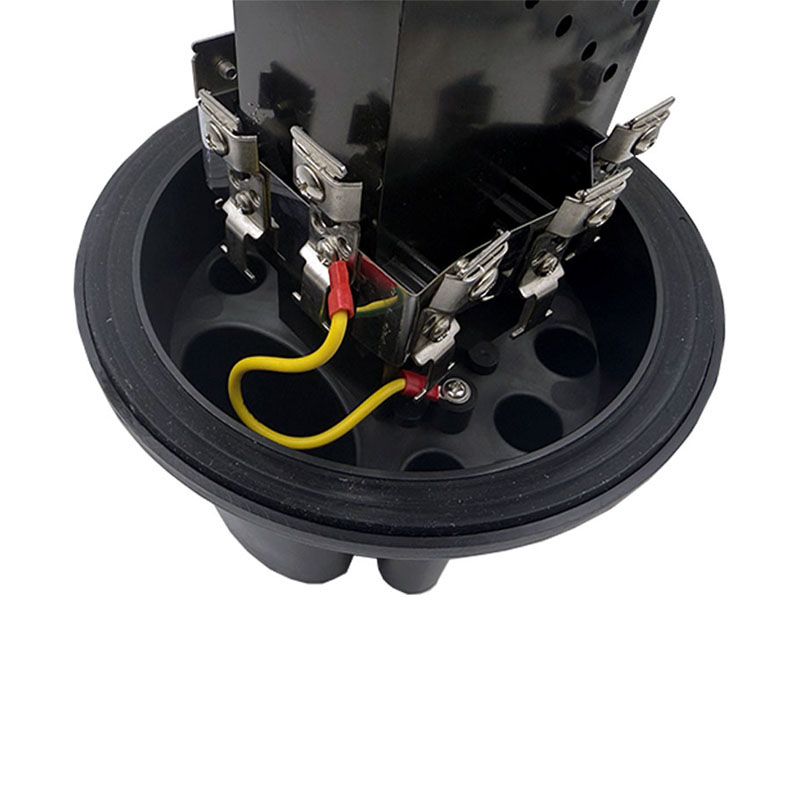

6. With a earthing device protect it from damage by lightning
7. Compatible with cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arc-over or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss
