Description:

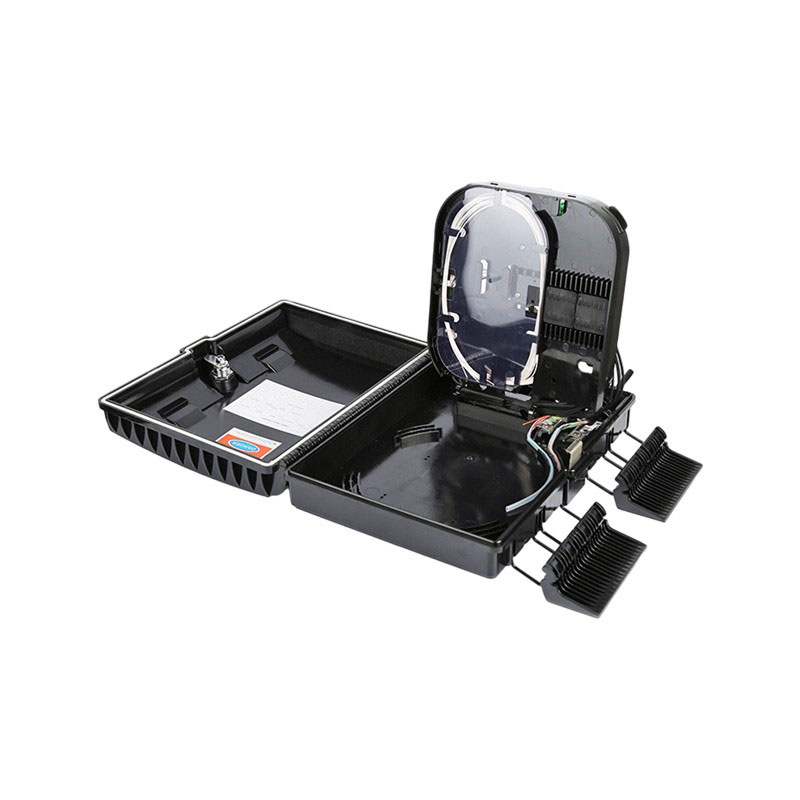

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:

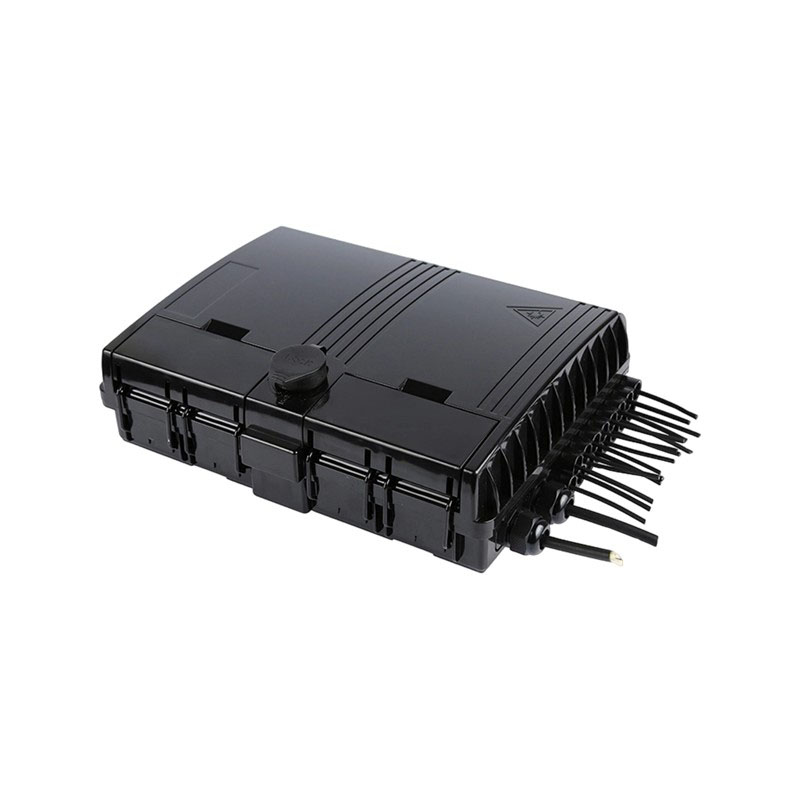

1. Total enclosed structure.
2. Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。

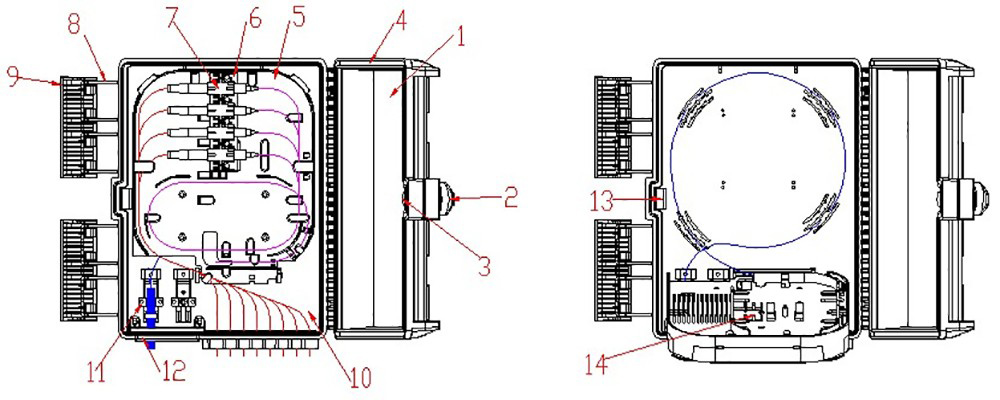

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc., all in one.

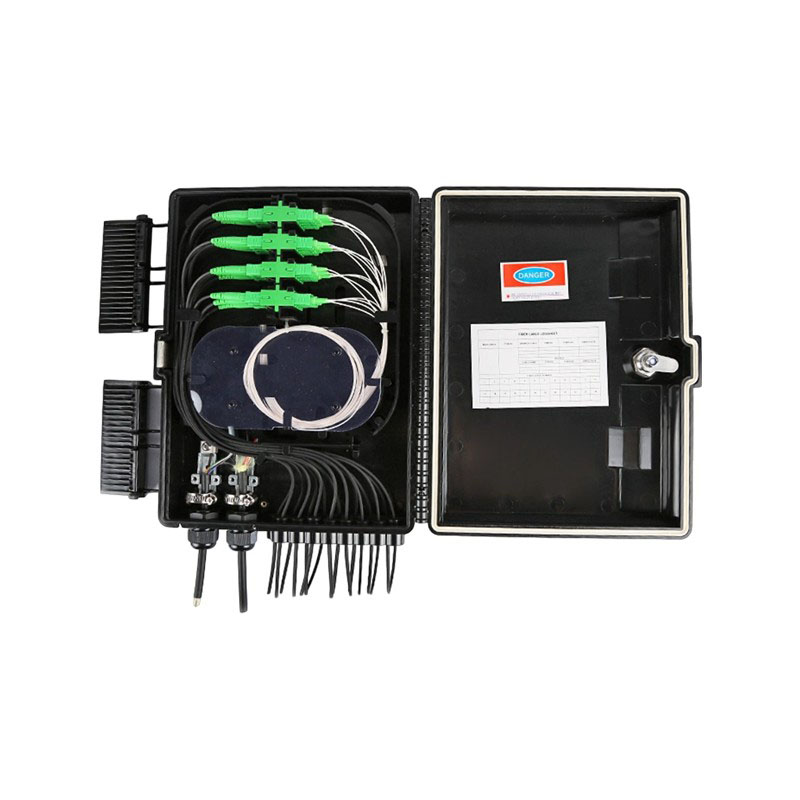

4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

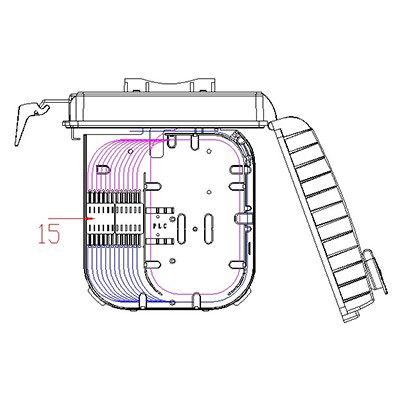

5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

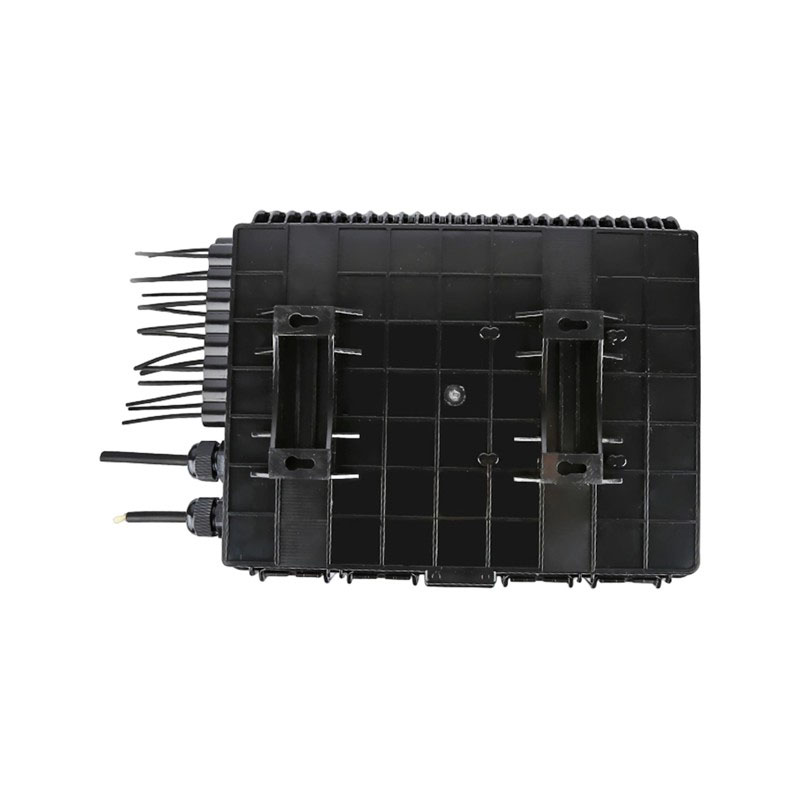

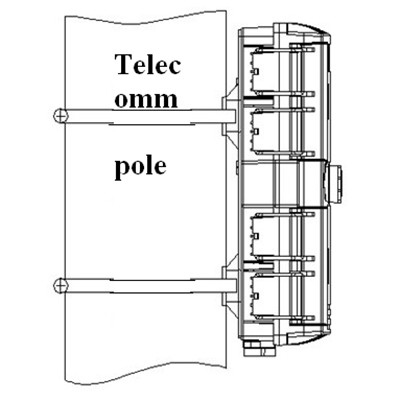

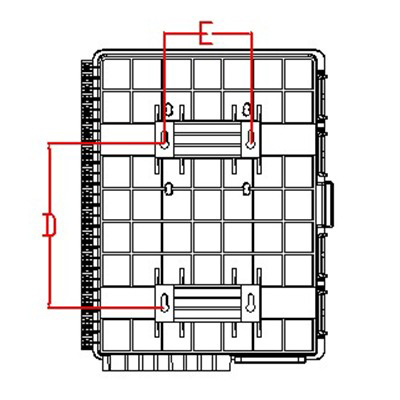

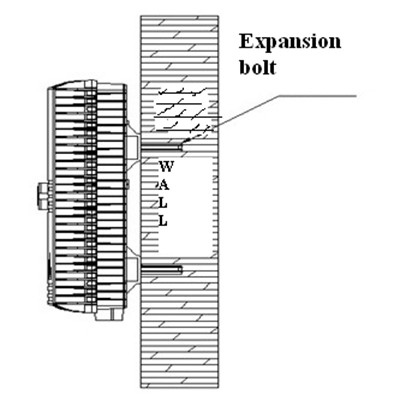

6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification:
1. Environmental requirement
Working temperature: -40℃～+85℃
Relative humidity: ≤85%（+30℃）
Atmospheric pressure: 70KPa～106Kpa
Main technical datasheet
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: ＞1000 times
Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC).
IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture, no flashover: U≥3000V
