Product Overview

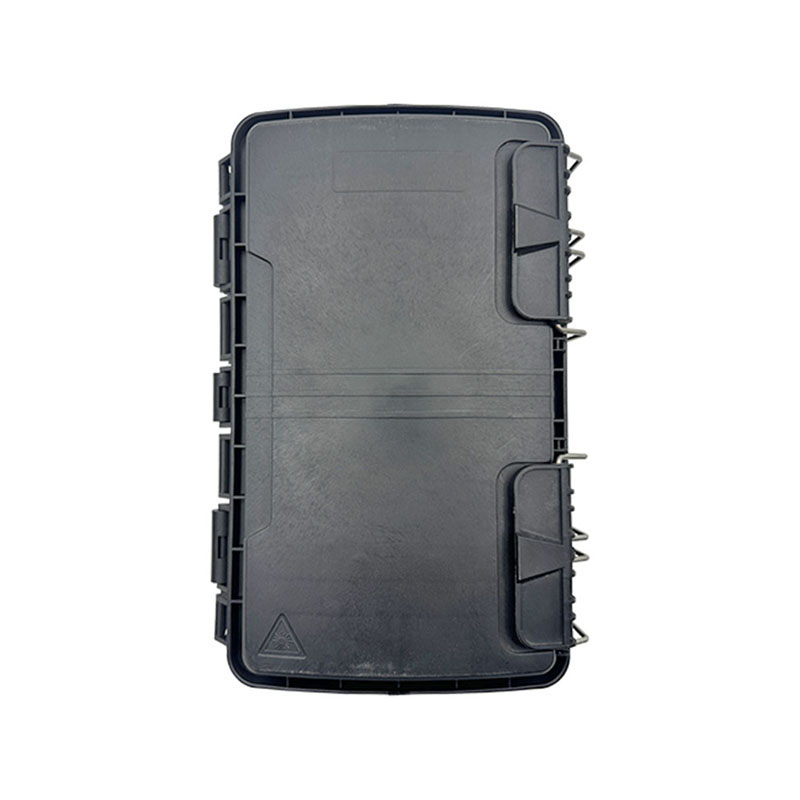

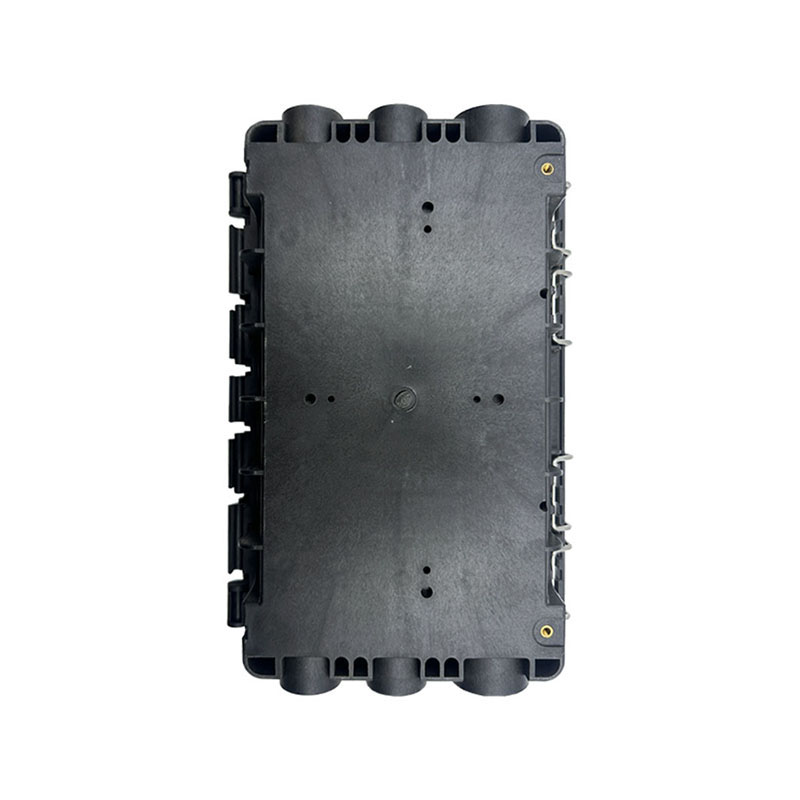

The WM-1001-F023 Fiber Optic Distribution Box is designed for fiber distribution, splicing and management in fiber access networks. It supports aerial mounting and provides 16 subscriber ports. The enclosure is made of PP+GF material with an IP65 protection rating, suitable for outdoor deployment in various scenarios.
Product Features
Enclosure Material and Appearance
The enclosure material is PP+GF.
The enclosure color is black (RAL 9005).
Overall dimensions are 290 mm × 190 mm × 110 mm.
Structural Design

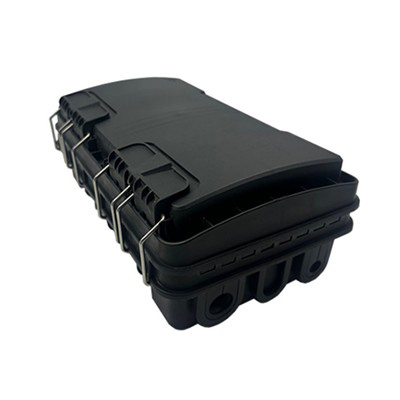

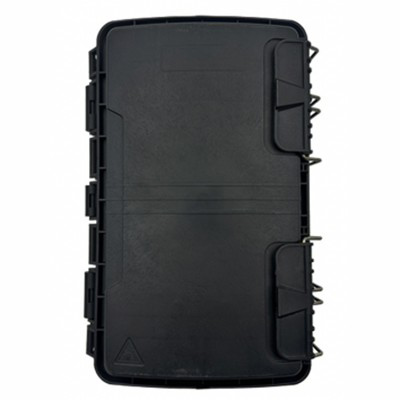

The enclosure adopts a hinged top cover with lockable design.

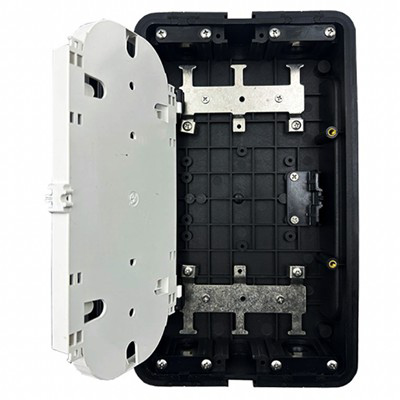

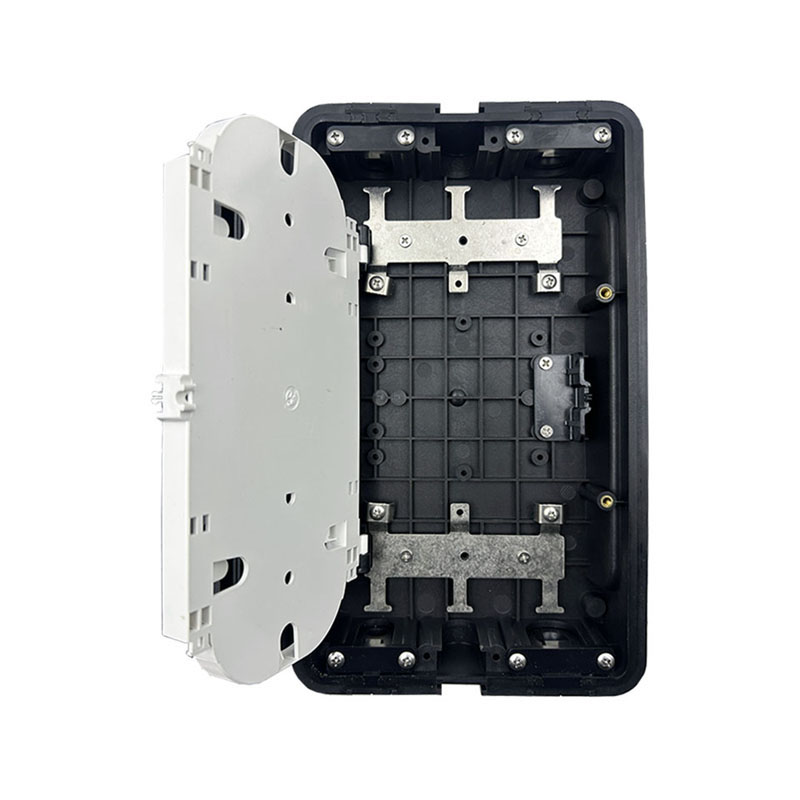

The internal layout supports fiber distribution and splicing operations.
A sealing ring structure is used for water resistance.
The clamshell design supports neat cable routing and installation.
Fiber and Port Configuration
Maximum supported fiber count is 24 cores.

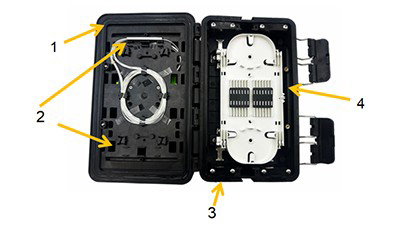

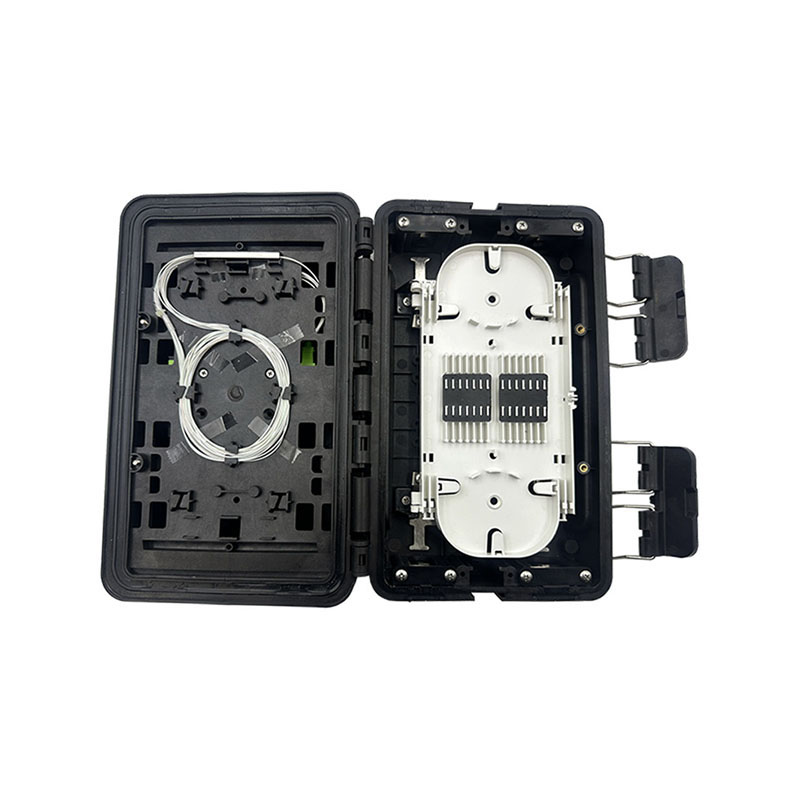

One splice tray is provided, supporting 1 × 24 fiber heat-shrink splicing.

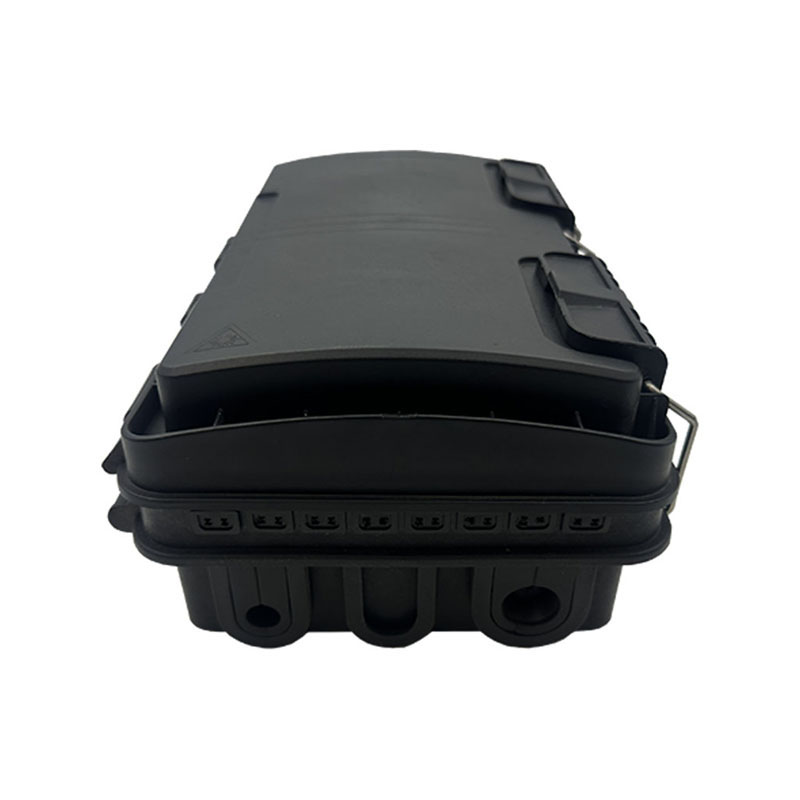

Sixteen outlet ports are provided for 2 × 3 mm drop cables.
Cable entry ports support diameters from Φ7 to Φ18.
Two inlet ports are provided and sealed with rubber seals.
Splitter and Adapter Support
Supports installation of two 1×8 PLC metal tube splitters or one 1×16 PLC metal tube splitter.

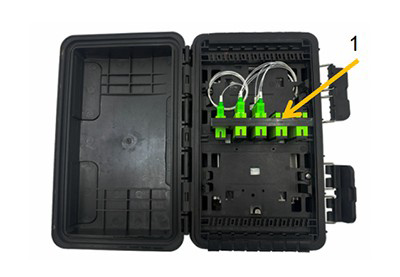

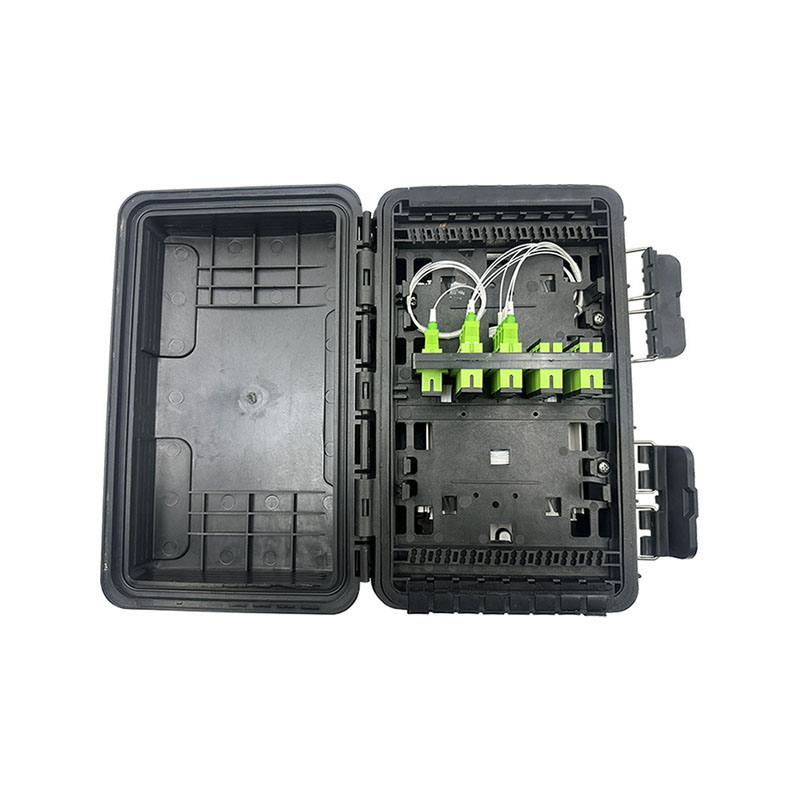

The adapter holder supports 16 positions for SC simplex or LC duplex adapters.
Environmental and Compliance Information
Operating temperature range: −40 ℃ to +85 ℃.
Storage temperature range: −40 ℃ to +85 ℃.
Compliant with RoHS 2011/65/EU and amendment directive (EU) 2015/863.
Compliant with REACH 1907/2006/EC.
Product Advantages (Based on Configuration and Design)
Sixteen subscriber ports support fiber access distribution requirements.
PLC splitter compatibility supports centralized fiber splitting.
IP65 protection rating supports outdoor aerial installation.
Adapter compatibility supports flexible network configuration.
Integrated design supports fiber splicing, distribution and management.

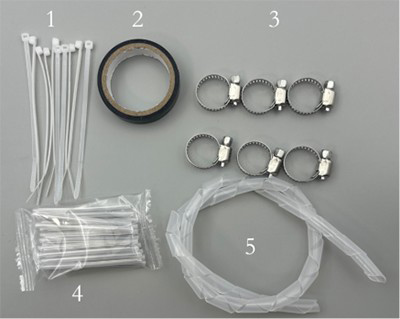

Installation and splicing accessories are provided for on-site deployment.
Applications
FTTH fiber access networks
Aerial fiber distribution points
Residential and industrial area access nodes
Outdoor fiber drop and subscriber connection scenarios
