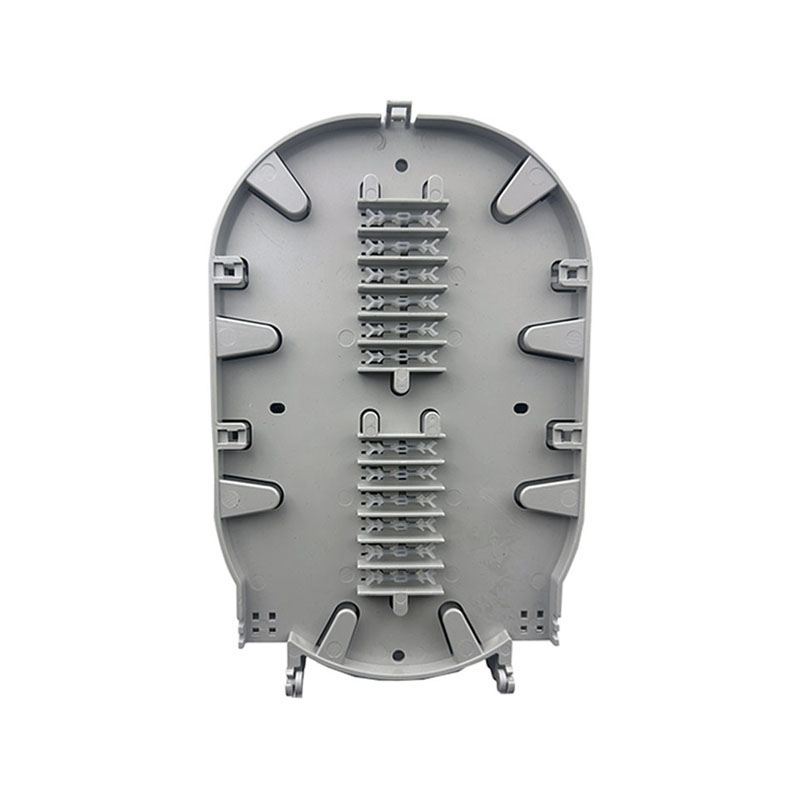

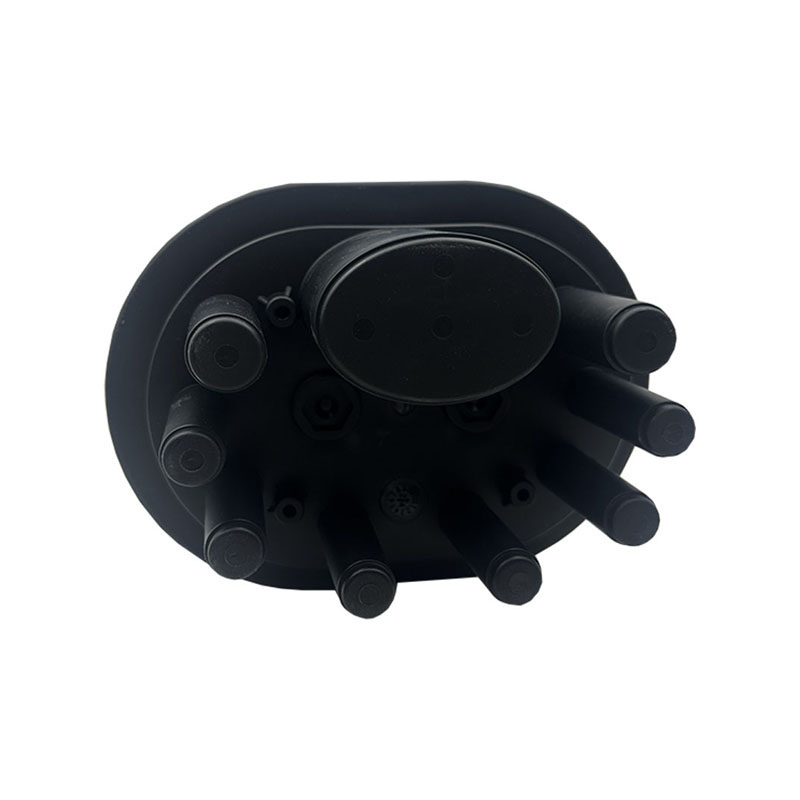

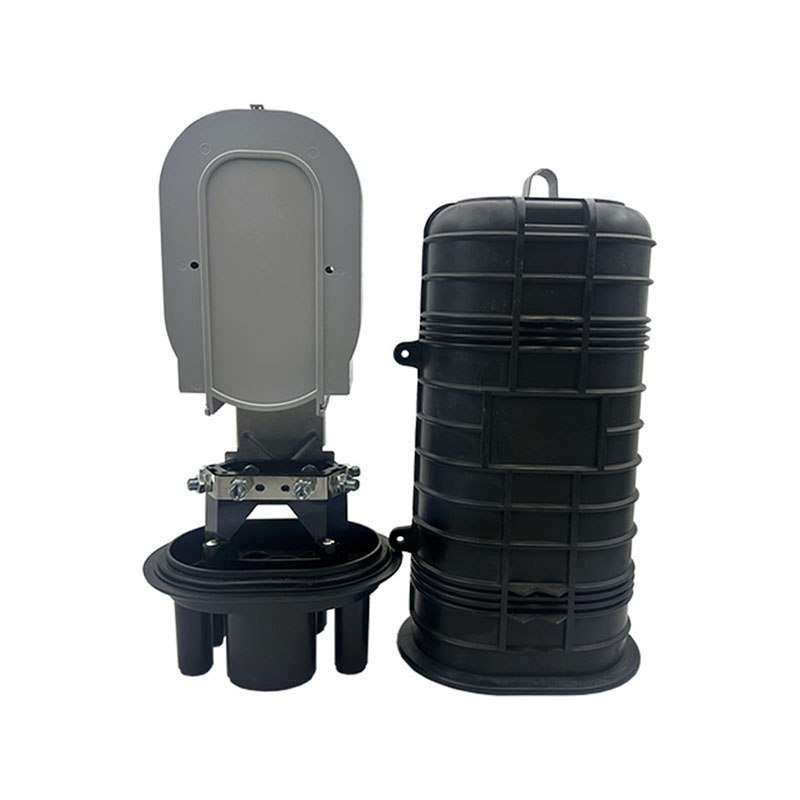

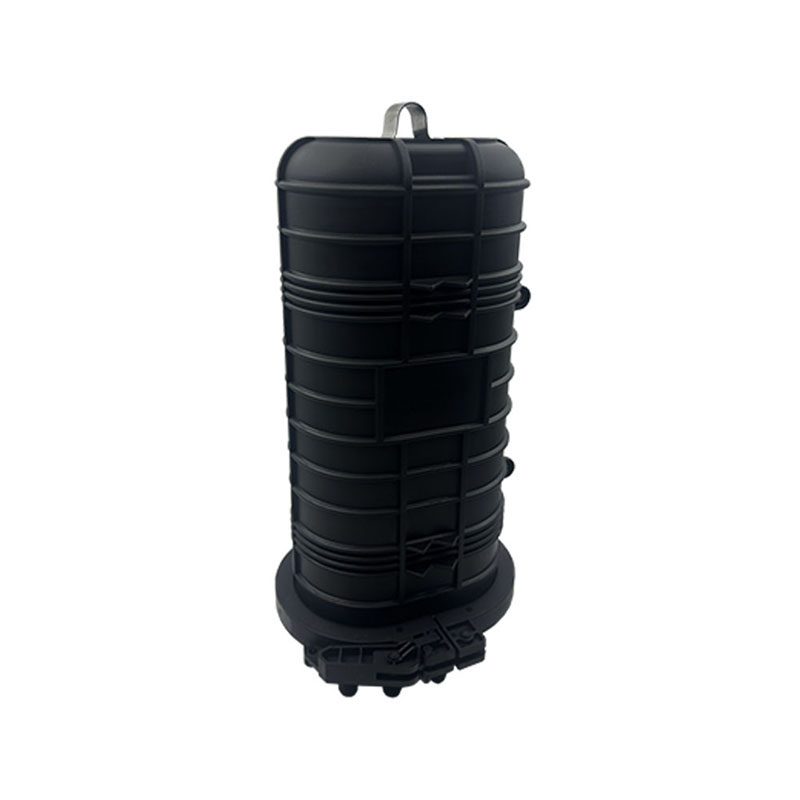

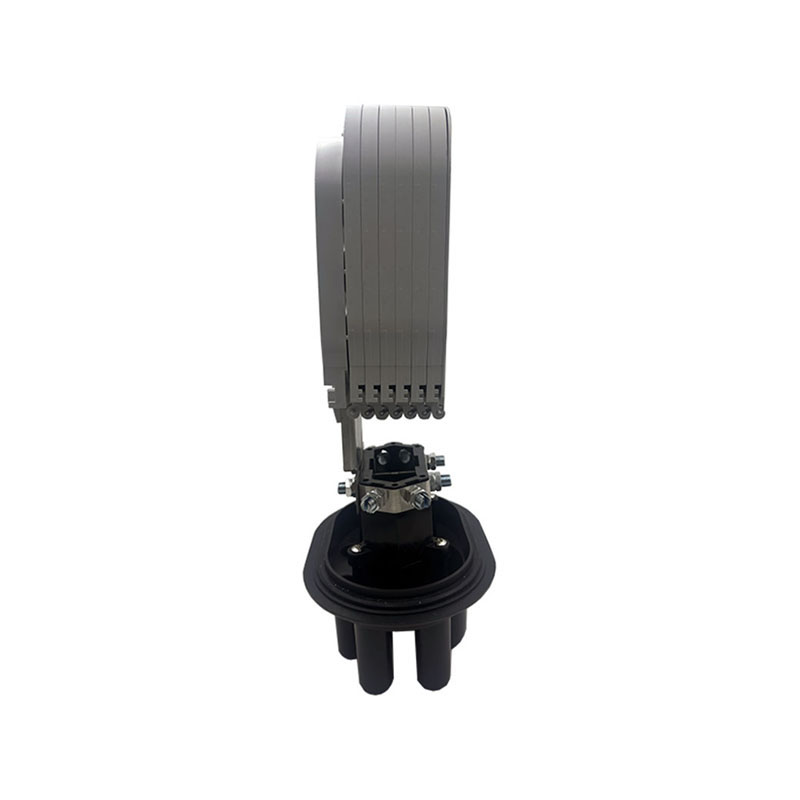

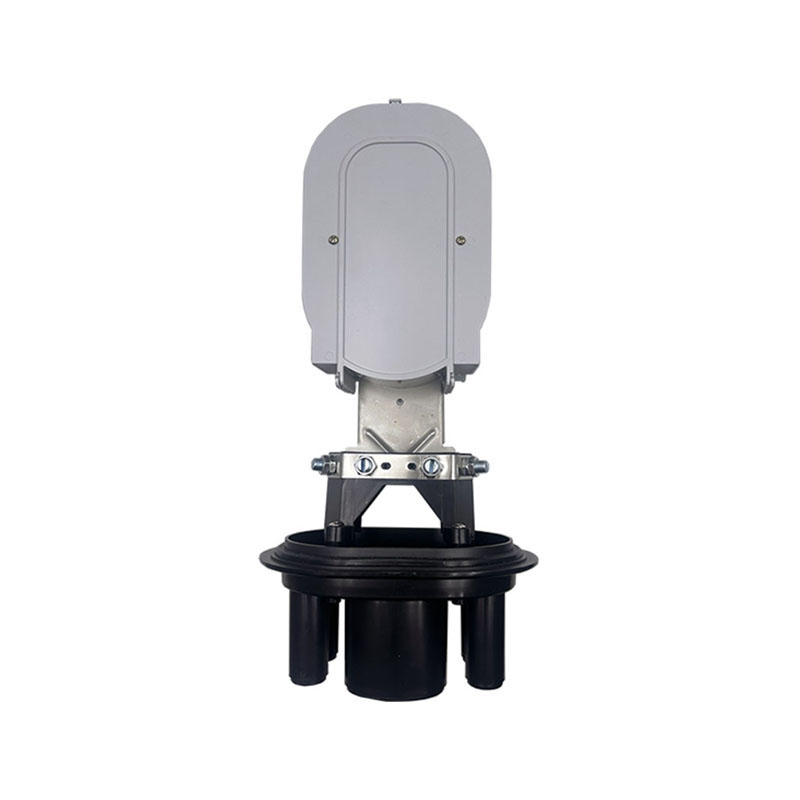

WM-2001-D10 Fiber Optic Splice Closure

Technical data

1. Comply with various technical data of YD/T814.1-2013
2. Cable port: 10
3. Cable Diameter: φ7-φ20
4. Max Capacity: 288  single tray=48fibers
5. Sealing way: silicone rubber
6. Dimension: 470 230MM
7. Weight: 2.5kg
8. Working life: 25years
9. Environment temperature: -40℃— +60℃ atmospheric pressure: 100kPa/24h
10. Sealing performance: inflation pressure: 70-106kPa
11. Tension: 800N/1min
12. Wafering: 2000N/100min
13. Impact: 1m/1.6kg steel ball/three times
14. Bending: 150N/±45℃/10cycles
15. Torsion: 50N.m/+90℃/10cycles
16. Insulated Resistance: 2 104MΩ/500v
17. Compression strength: 15kv/1min/10mA
18. IP68

Features and Advantages
Suitable for straight-through, diverging and connection of FTTH, FTTB all kinds of optical communication passive network.
Small core Horizontal fiber optic splice closure Use material of high-strength PP synthetic plastics.
Shell thickness≥4mm. enhanced insulation and heat resistance Corrosion resistance, aging resistance, flame resists-nee and long working life.
Heat-shrinkable seal and sticky cincture seal.
Repeatedly reuse, be able to expand capabilities, convenient to construct and install, good sealing.
Installation method.
Directly buried After inflate, it can be buried directly. Wall-mounting: with hanging hook,it can be fixed up to the conduit. Aerial-hanger; with hanging hook, it can be hanged on the steel wire.

Basic accessories
1. Cable tie

2. Heat-shrinkable tube

3. PVC tube

4. Heat-shrinkable protection tube

5. Silver paper

6.Alcohol paper
