Introduction

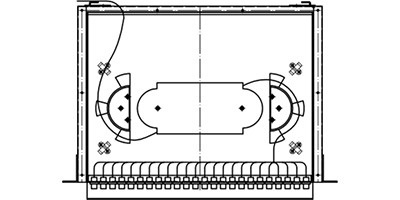

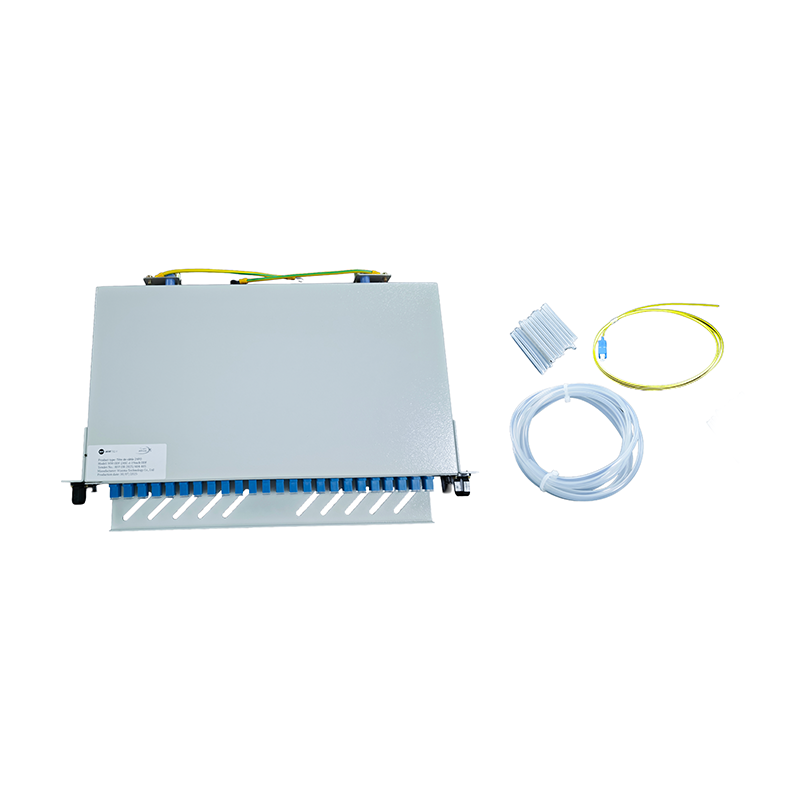

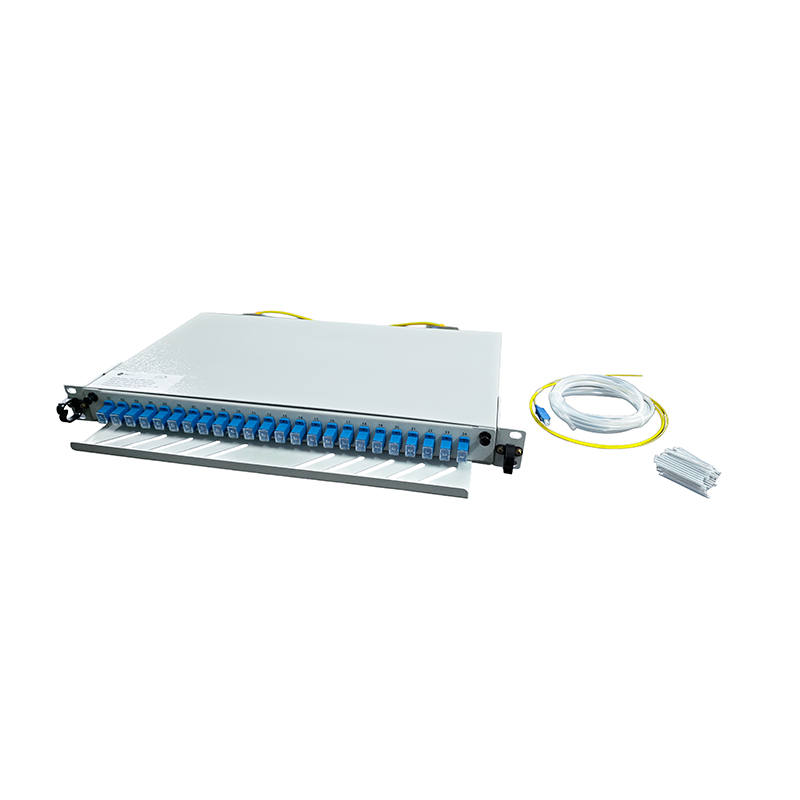

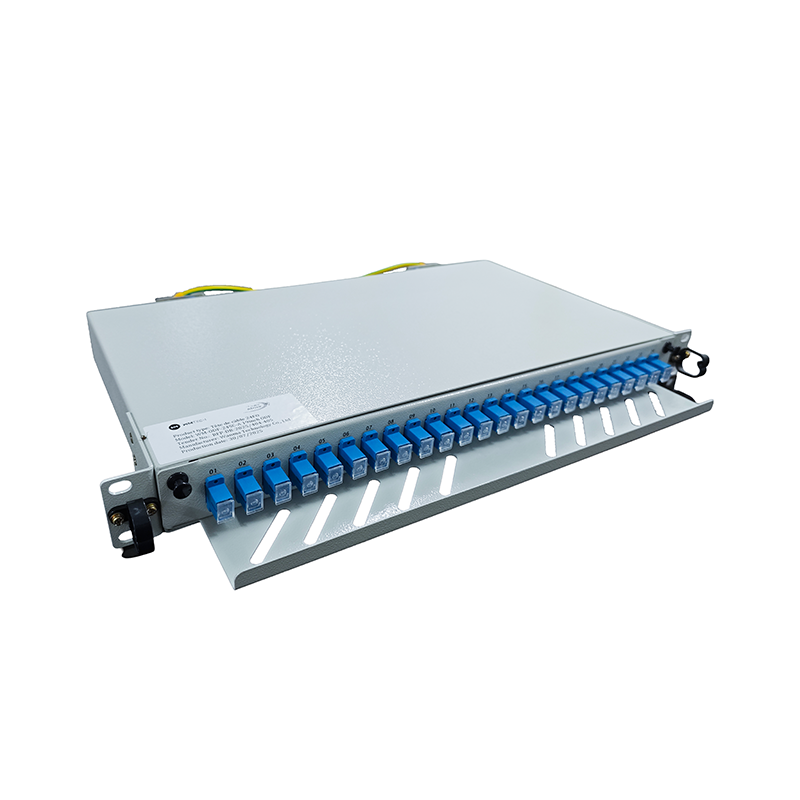

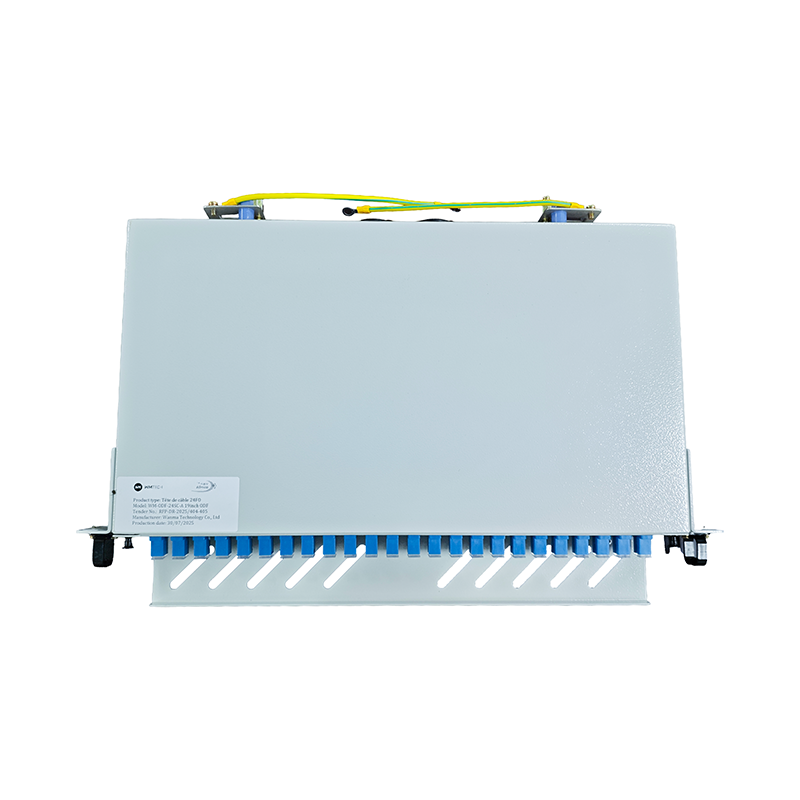

The WM-ODF-24SC standard ODF is a high-density, high-capacity fiber management unit that integrates the splicing and distribution of optical fibers. The ODF unit has a capacity of 24 cores and a height of 1U. It can be installed in a 19-inch standard rack or cabinet freely according to user needs. The ODF unit has cable fixing function, fiber protection function, fiber splicing function, wire adjustment function, and fiber core and pigtail protection. The device is flexible in configuration, easy to install and use, easy to maintain, and easy to manage.
Feature

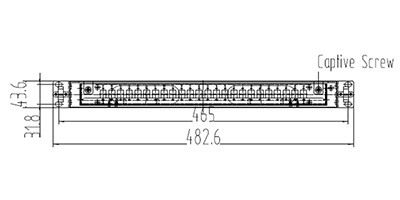

1. 19-inch standard unit construction size, free to fit into the distribution frame cabinet.
2. The adapter panel and ODF are made of metal material, the surface is sprayed, beautiful and durable; the splice tray and the cable guide are made of PP material, which is light, flexible and durable.

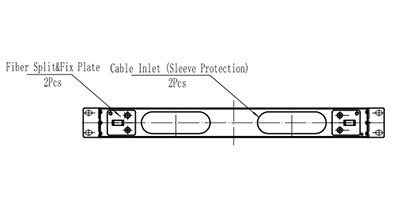

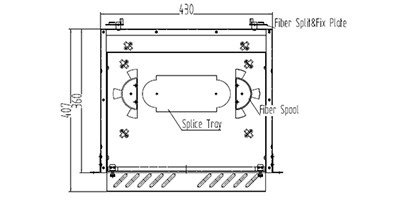

3. At the rear of the ODF unit, there is a cable inlet hole and an optical cable splitting and fixing device; the optical cable is introduced from the back side and opened and peeled and fixed, and spliced with the pigtail in the splice tray, and to be terminated by devices or end user if applied.
4. The ODF unit adopts a drawer structure, which can be extracted when splicing, and reset after the operation is completed. At the same time, the pull-type device has a limiting device to prevent excessive extraction and damage the optical fiber.
5. SC adapter is available.
6. Applicable to ribbon, bundle and single core cable.
Working Condition
Working Temperature：-25℃～+40℃
Environment Temperature：-40℃～+60℃
Storage Temperature：-25℃～+55℃
Relative Humidity：≤85%（+30℃）
Air Pressure：70Kpa～106Kpa。
Technical Parameter
1. Standard Working Wavelength：850nm、1310nm 、1550nm
2. Insertion Loss：≤0.3dB
3. Return Loss: PC≥40dB、UPC≥50dB、APC≥60dB
4. Electric Strength: ≥3KV (DC)/1min, no breakdown, no arcing.
5. Insulation Resistance: ≥1000 MΩ/500V(DC)
6. Insertion life: 500times.
