Optical Communication Products
Home / Products / Telecommunications Products / Optical Communication Products / Fiber Solution-Access Layer Optical Distribution Frame

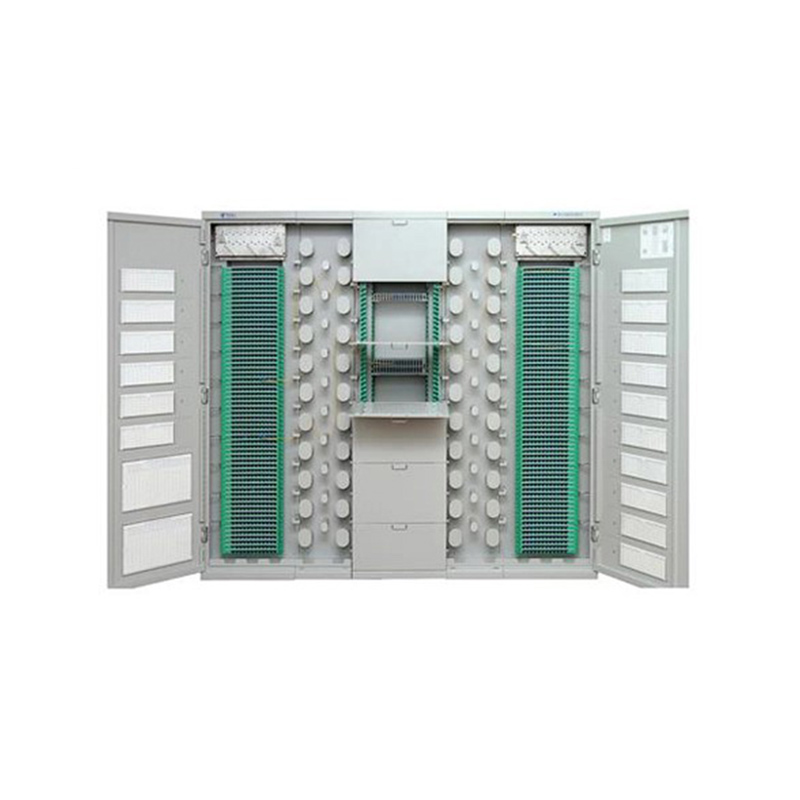

  • Fiber Solution-Access Layer Optical Distribution Frame
  • Fiber Solution-Access Layer Optical Distribution Frame
  • Product Details
  • FAQ

Ordering Guide:
A Type

Product Name

Dimensions(H * W * D)mm

Capacity(1:32)

Notes

Basic Frame
(Splitting Area 1)

2200*500*300

6 Slots/ Unit, 12
Units/ Frame
(1152 Cores)

1 Tray Type
Splitter
;
2 Main Types of
the Splitter(1:32
or 1:64)

2000*500*300

6 Slots/ Unit, 11
Units/ Frame
(1056 Cores)

1800*500*300

6 Slots/ Unit, 10
Units/ Frame
(960 Cores)

1600*500*300

6 Slots/ Unit, 8
Units/ Frame
(768 Cores)

Extended Frame
(Termination Area
1)

2200*500*300

72 Cores/ Unit, 792
Cores (11 Units)/
Frame

1. Splitter Tray
made of aluminous
shell having cable
outlets on bothright and left side
;
2. 12F Splice and
Distribution
Integrated Tray

2000*500*300

72 Cores/ Unit, 792
Cores (10 Units)/
Frame

1800*500*300

72 Cores/ Unit, 792
Cores (9 Units)/
Frame

1600*500*300

72 Cores/ Unit, 792
Cores (7 Units)/
Frame

Fiber Storage and
Management
Frame (Patch Cord
Area 1)

1600/1800/2000/2200*300*300

Fiber Storage




B Type

Product Name

Dimensions(H * W * D)mm

Capacity(1:32)

Notes

Basic Frame
(Splitting Area 1)





1 Splitter Tray
made of aluminous
shell having cable
outlets on both
right and left side
;
2 Main Types of
the Splitter(1:32
or 1:64)

2200*500*300

6 Slots/ Unit, 12
Units/ Frame
(1152 Cores)

2000*500*300

6 Slots/ Unit, 11
Units/ Frame
(1056 Cores)

1800*500*300

6 Slots/ Unit, 10
Units/ Frame
(960 Cores)

1600*500*300

6 Slots/ Unit, 8
Units/ Frame
(768 Cores)

Left Extended
Frame
(Termination Area
1)
Right Extended
Frame 2
(Termination Area
2 & Splitting Area
2)

2200*500*300

72 Cores/ Unit, 792
Cores (11 Units)/
Frame

12F Splice and
Distribution
Integrated Tray

2000*500*300

72 Cores/ Unit, 792
Cores (10 Units)/
Frame

1800*500*300

72 Cores/ Unit, 792
Cores (9 Units)/
Frame

1600*500*300

72 Cores/ Unit, 792
Cores (7 Units)/
Frame

Left and Right
Fiber Storage and
Management
Frame (Patch Cord
Area 1, 2)

1600/1800/2000/2200*300*300

Fiber Storage
